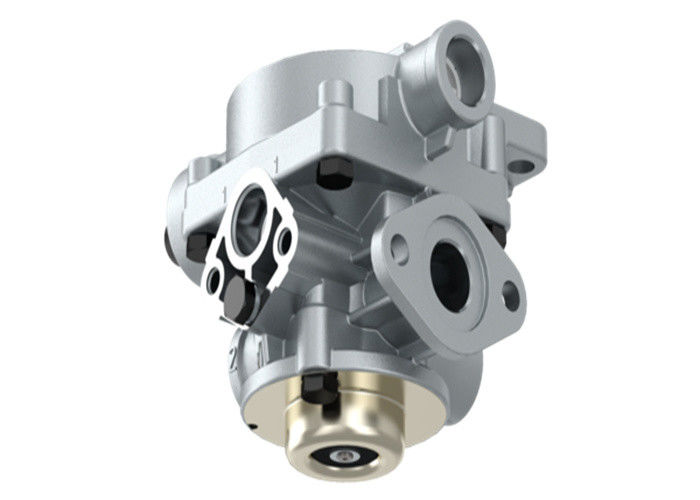

Stainless Steel Oil Pressure Valve 9710021500 Safety Relay Emergency Valve
Product Details:
| Place of Origin: | Zhejiang,China |
| Brand Name: | ETPS/DPOP |
| Model Number: | For 9710021500 Relay Emergency Valve |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | According to customer requirements/Regular packaging |
| Delivery Time: | 45 days |
| Payment Terms: | D/P, L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Pcs /Mouth |
|
Detail Information |
|||
| Product Name: | For Relay Emergency Valve | Structure: | Safety |
|---|---|---|---|
| Material: | Stainless Steel | Application: | General |
| Standard Or Nonstandard: | Standard | Body Material: | Stainless Steel |
| Connection: | Flanges Universal Standard | Color: | Customer's Request |
| Highlight: | Stainless Steel Oil Pressure Valve,Safety Relay Emergency Valve,9710021500 |
||
Product Description
For 9710021500 Relay Emergency Valve
Product Description
The relay emergency valve controls the air brake system of a trailer and provides the "emergency brake function". It's not needed in the installation contains already a park and shunt valve like TEM with this function. The valve complies with the requirements of EC regulations regarding brake systems. Versions with a predominance device can adapt the braking effect between towing and towed vehicle.
| OEM NO. | 9710021500 | Type | Only Emergency valve |
| Alternative | 971 002 300 0 is the same except without flange for manual LSV | Distance between holes | 71.0 mm |
| Max.operating pressure | 10.0 bar | Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 | Port thread 12 | M22 x 1.5 |
| Size (mm x mm x mm) | 184 x 126 x 121 | Technical specification | OE specification |
